| Description | |
|---|---|
| Catalogue Number | SLGVR33RS |
| Replaces | SLGV033RS and SLGVM33RS |
| Trade Name |
|

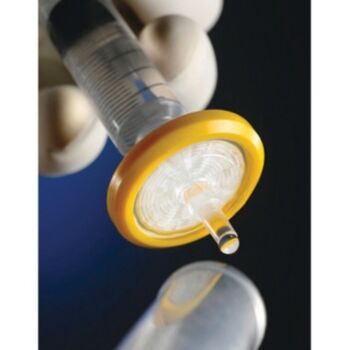

| Description | Millex-GV Syringe Filter Unit, 0.22 µM, PVDF, 33 mm, gamma sterilized |
| Overview | This item is a direct replacement for SLGV033RS and SLGVM33RS in countries where restricted. |
| Background Information | Sterile Millex filter units are available in a larger 33 mm housing with either MCE, PVDF or PES membranes. Faster flow rate: The larger filter surface area increases flow rate and throughput. It also makes it easier to filter solutions because it reduces the pressure required to empty the syringe. Higher operating pressure: Millex filters have a maximum housing pressure of 10.5 bar (150 psig), which means you can filter solutions faster than before. Color-coded: The color-coded band on the Millex housing clearly indicates which membrane is inside. Manufactured for reliable performance: Millex filters are manufactured in a controlled environment using an automated process. Human hands never touch the filter during assembly. A Certificate of Quality included in each box describes Millipores quality standards in detail. Choice of membranes: Millex filters are available with three membranes: Millipore Express® (PES) membrane, mixed cellulose esters (MCE), and Durapore (PVDF). - Millex-GP filters feature Millipore Express (PES) membrane, which provides a unique combination of speed and six times less protein binding than competitive PES membranes. Millex-GP filters are recommended for sterile filtering protein solutions, tissue culture media, buffers and additives. - Millex filters with Durapore® (PVDF) membrane are the lowest protein-binding syringe filters available. Use them to filter protein solutions. The 0.2 µM filters are sterilizing grade. Larger pore sizes are for clarification and prefiltration. - Millex-MF filters feature mixed cellulose esters (MCE) membrane, which provides reliable, general purpose filtration of water or other aqueous solutions. The 0.2 µM filters are sterilizing grade. Larger pore sizes are for clarification and prefiltration. Applications: Sterilization of Aqueous Solutions, Organic Solvents and Gases, Filtration of High Value Protein or Small Molecule Components. |
| Product Information | |
|---|---|
| Connections, Inlet/Outlet | Female Luer-Lok/Male Luer slip |
| Filter Code | GS |
| Fitting Inlet | Female Luer-Lok® |
| Fitting Outlet | Male Luer slip |
| Color Code | Yellow |
| Maximum Inlet Pressure, bar (psi) | 10 bar (145 psi) |
| Maximum Operating Temperature | 45 °C |
| Direct Patient Care (Y/N) | N |
| Quality Level | MQ400 |
| Applications | |
|---|---|
| Application | A 33 mm diameter sterile syringe filter with a 0.22 µM pore size hydrophilic PVDF membrane. Comes in a pack of 50. |
| Key Applications |
|
| Biological Information | |
|---|---|
| Media | MF-Millipore |
| Sterility | Sterile |
| Sterilization | Gamma irradiation |
| Stem Cell Type |
|
| Wettability | Hydrophilic |
| Physicochemical Information | |
|---|---|
| Pore Size | 0.22 µM |
| Hold-up Volume | < 0.1 mL |
| Dimensions | |
|---|---|
| Height | 27 mm |
| Diameter | 3.3 cm |
| Filtration Area | 4.5 |
| Process Volume | 100 mL |
| Volume | 100 mL |
| Filter Diameter (⌀) | 33 mm |
| Materials Information | |
|---|---|
| Chemistry |
|
| Device Material |
|
| Product Usage Statements | |
|---|---|
| Availability by Geography |
|
| Packaging Information | |
|---|---|
| Material Size | 50 |
